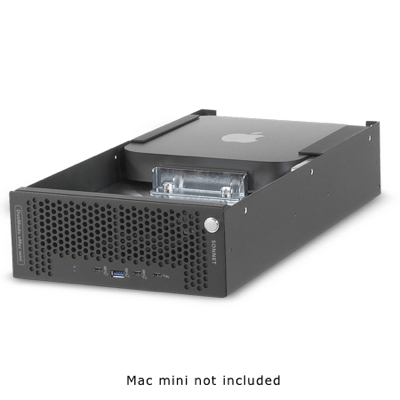

DuoModo xMac mini Module for one Mac mini (Intel, M1, M2)

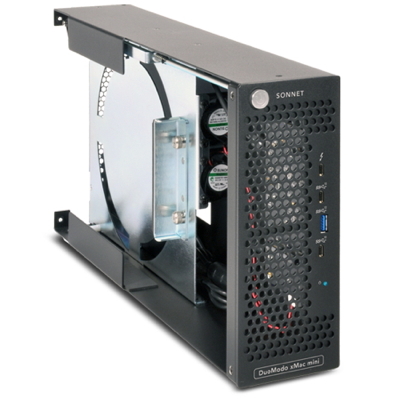

DuoModo xMac mini Module for one Mac mini (Intel, M1, M2) - Image 2

DuoModo xMac mini Module for one Mac mini (Intel, M1, M2)

RRP: $1529.00 including GST

Part Code: DM-MOD-ZM
Prod Desc: DuoModo xMac mini Module for one Mac mini (Intel, M1, M2)
Stock On Hand: 0
Stock ETA: 12 Days

Warranty: 2 Years

SKU: DM-MOD-ZM Categories: ,

Information

The DuoModo™ xMac™ mini Module is the ultimate Mac mini® upgrade. The module provides secure computer mounting in a DuoModo desktop or rackmount enclosure. It includes a built-in 40Gbps Thunderbolt™ 3 storage dock that adds NVMe storage expansion capability and additional ports for connecting peripherals.

Add a Mac mini
Built-in Thunderbolt Dock with SSD Sockets and Front Panel Ports
Internal USB Type A Port
Quiet Fan

The choice is yours – mix and match DuoModo™ enclosures with modules to create your own custom Thunderbolt™ expansion system or choose a pre-configured system to help take the guess work out of configuration options. For computers with Thunderbolt 3 or Thunderbolt 4 ports.

Features

Form Factor
• Expansion system module

Front Panel Connectors
• One Thunderbolt (USB Type-C) port
• Two USB 3.2 (10Gbps) Type-C ports
• One USB 3.2 (10Gbps) Type A port

Internal Connectors
• One Thunderbolt (USB Type-C) port to Mac mini
• One USB 3.2 (10Gbps) Type A port for thumb drive or dongle
• Two M-keyed (NVMe) M.2 sockets (each connected at PCIe x2) SSDs
• One or two M.2 2280 NVMe PCIe SSDs (with or without heat sink)

Power Supply
• Universal 96W, 100-240V AC, 50-60Hz
• C14-type power connector

Operating Temperature
• 0ºC to 35ºC (32ºF to 95ºF)

Dimensions (WxDxH)
• 3.3 x 16.4 x 8.5 in. (8.4 x 41.6 x 21.7 cm)

Weight
• 4.95 lbs (2.25 kg)

Compliance
• RoHS 3 (Directive 2015/863)
• IEC62368-1 and IEC62368-2

Package Contents
• xMac mini Module
• Power cord
• 0.5-meter Thunderbolt 3 (40Gbps) cable
• Documentation

Mac Compatibility
• Mac mini® (2020 M1, 2023 M2&M2 Pro)
-macOS® 11.3+
• Mac mini (2018 Intel® current version)
-macOS 10.14.6 – macOS 11.3+
• Mac mini (Late 2014) with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately)
-macOS 10.12.6 – macOS 11.3+
• Mac mini (Late 2012) with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately)
-macOS 10.12.6 – macOS 10.15.7+
