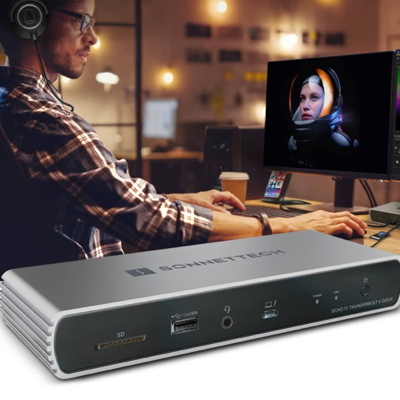

Echo 11 Thunderbolt 4 Docking Station

Connect to Your Peripherals and Power Your Computer with One Cable

Plug in your monitor(s), Thunderbolt devices, USB peripherals, and Ethernet cable. Then connect them all with a single Thunderbolt cable from the dock to your computer. The Echo 11 Thunderbolt 4 Dock will even power your laptop with up to 90W of charging power. When it is time to leave, just unplug the Thunderbolt cable, grab your laptop, and go.

The Echo 11 Dock features four Thunderbolt 4 ports; one for connection/power to your computer, plus three to directly connect Thunderbolt peripheral devices (and daisy chain up to a total of 5 devices). The Thunderbolt ports also support USB4 and USB 3 peripherals. For connected peripherals using bus power, the Dock’s Thunderbolt peripheral ports provide 15W per port, supporting even the most demanding bus-powered Thunderbolt and USB peripherals.

Perfect for Mac® and supported Windows® computers, including Apple® M1 Macs with limited Thunderbolt ports. Connect the dock and create three separate independent Thunderbolt expansion chains. Add and disconnect devices from one chain without affecting the others.

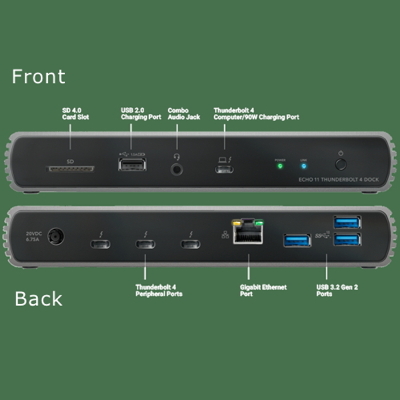

External Connectors
• Four Thunderbolt 4 ports
• Three USB 3.2 Gen 2 (10Gbps) Type A ports
• One USB 2.0 Type A charging port
• One RJ45 (Gigabit Ethernet) port
• One 3.5 mm combination audio headphone/microphone jack
• One SD 4.0 card slot
• One power connector

Display Connectivity
• Resolution and number of monitors supported dependent on computer specification

Thunderbolt 4 Peripherals Ports
• Connectivity
-With USB-C connector
• Peripherals Supported
-Thunderbolt 3
-Thunderbolt 2(1) (macOS)
-USB4
-USB 3, 2.0 and 1.1 devices
-Thunderbolt 3 and USB-C monitors
-DisplayPort and HDMI monitors

USB 3.2 Gen 2 Type A Ports
•Connectivity
-With USB Type A connector
• Peripherals Supported
-USB 3, 2.0 and 1.1 devices
• Data Transfer Rate
-USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps

USB 2.0 Type A Port (Front Panel)
• Connectivity
-With standard male USB-A connector
• Peripheral Supported
-USB 3, 2.0 and 1.1 devices
•Data Transfer Rate
-USB 3 or 2.0 peripherals: 480 Mb/s
•Charging
-7.5W capacity to charge iPad, iPhone, or other device
-USB Battery Charging 1.2–compliant
-Supports simultaneous charging and syncing

RJ45 (Gigabit Ethernet) Port
• Network Support
-Supports 1000 Mb/s, 100 Mb/s, and 10 Mb/s network speeds and Auto-MDI/MDI-X
•Standard
-Compliant with 10/100/1000 IEEE 802.2 Specification
• Network
-Gigabit Ethernet (1000BaseT, 100BaseTX, 10BaseT)
• Packets
-Maximum packet size: 9000 bytes (Jumbo packets)
• Chip
-Realtek RTL8153B

SD Card Slot
• Cards Supported
-SD, SDHC, SDXC

Power Delivery
• Provides laptop charging up to 90W

Power Adapter
• Universal 135W, 100-240V AC, 50-60 Hz
• IEC 60320-C5 receptacle type

Operating Temperatures
• 0˚C to 35˚C (32˚F to 95˚F)

Dimensions WxDxH (Dock)
•7.9 x 3.0 x 1.2 in. (20.0 x 7.5 x 3.0 cm)

Dimensions WxDxH (Power Supply)
• 2.5 x 5.7 x 1.2 in. (6.4 x 14.4 x 3.0 cm)

Weight
• Dock and Power Supply: 1.7 lbs (0.79 kg)
• Complete Package: 3.3 lbs (1.5 kg)
