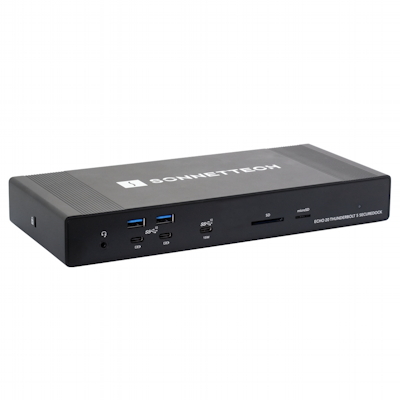

Echo 20 Thunderbolt 5 SecureDock

Universal Thunderbolt 5 Dock with Three Thunderbolt 5 Ports, Two Display Connection Ports, One 10Gb Ethernet Port, Nine 10 Gbps USB 3 Ports, and More

Introducing Echo 20 Thunderbolt 5 SecureDock — a powerful enterprise dock with built-in 10GbE networking designed for secure environments that prohibit onboard storage. Transform a single cable connection from your computer into two Thunderbolt 5 peripheral ports, two video output ports, one 10Gb Ethernet port, nine 10 Gbps USB 3 ports, and more! With 80 Gbps of bi-directional data speed — twice as fast as Thunderbolt 4 — and 120 Gbps for higher display bandwidth, SecureDock delivers the performance and connectivity modern enterprise workflows demand.

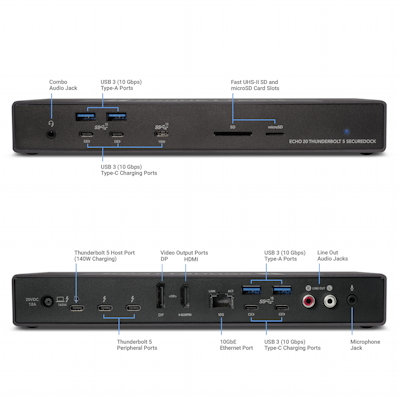

Connectors
Three Thunderbolt 5 ports
RJ45 10 Gigabit Ethernet port
Video Output (HDMI) port
Video Output (DP) port
One 15W USB 3.2 Gen2 (10 Gbps) Type-C charging port
Four 7.5W USB 3.2 Gen2 (10 Gbps) Type-C charging ports
Four USB 3.2 Gen 2 (10 Gbps) Type A ports
Two (right and left channels) line out RCA jacks
3.5mm combination headphone/microphone jack
3.5mm microphone jack
UHS-II SD card slot
UHS-II microSD card slot
Power connector

Thunderbolt 5 Computer Port
Power Delivery
Provides laptop charging up to 140W(3)

Cables Supported
Any Thunderbolt 5 cable (0.8-meter included)

Thunderbolt 5 Peripherals Ports

Note that the downstream ports are not necessarily Thunderbolt 5 ports; they are the same as the host ports (Thunderbolt 5, Thunderbolt 4, or USB4).

Connectivity
With USB-C connector

Peripherals Supported
Thunderbolt 5 devices
Thunderbolt 4 devices
Thunderbolt 3 devices
USB4 v2 devices
USB4 devices
USB hubs
Thunderbolt 5, 4, 3, and USB-C monitors
DisplayPort and HDMI monitors(4)

Video Output (HDMI) Port

Windows
HDMI 2.1 up to 8K 60Hz

macOS
HDMI 2.0b up to 4K 60Hz

Video Output (DP) Port
DP 2.0 up to 4K 144Hz

USB 3.2 Gen 2 Type A Ports

Connectivity
With USB Type A connector

Peripherals Supported
USB 3, 2.0 and 1.1 devices

Data Transfer Rate
USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10 Gbps

USB 3.2 Gen 2 Type-C Ports

Connectivity
With USB Type-C connector

Peripherals Supported
USB 3, 2.0 and 1.1 devices

Data Transfer Rate
USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10 Gbps

Charging
1.5A per port advertised using USB Type-C Charging; 3A for front panel port marked with 15W
7.5W per port for operation or charging; 15W for front panel port marked with 15W
Supports simultaneous charging and syncing

RJ45 (Ethernet) Port
Network Support
10GBASE-T (100 meters using Cat 6A cabling; 55 meters using Cat 6 cabling)
5GBASE-T(5), 2.5GBASE-T(5), 1000BASE-T, 100BASE-TX (100 meters using Cat 5e [or better] cabling)

Standard
Compliant with 802.3bz-2016 and 10/100/1000 IEEE 802.2 Specifications

Packets
Maximum packet size: 16352 bytes (jumbo frames); 9000 bytes under macOS

Data Rates Supported(5)
10 Gbps, 5 GBps, 2.5 Gbps, 1 Gbps, 100 Mbps

AVB (Audio/Video Bridging) Support
macOS only

Chip
Marvell AQC113C

Advanced Features
Flow control support
MSI (Message Signaled Interrupts)
RSS (Receive-Side Scaling)
Interrupt coalescing
Multicast filtering
Energy-Efficient Ethernet (IEEE 802.3az)
64-bit address support for systems using more than 4GB of physical memory

Stateless Offloads
TCP, UDP and IPv4 checksum offloading
TSO (TCP Segmentation Offload, AKA Large Send Offload)
LRO (Large Receive Offload)
RSS (Receiver Side Scaling)

SD Card Slot
Fast UHS-II SD Card Reader

Cards Supported
SD, SDHC, SDXC

microSD Card Slot

Fast UHS-II SD microSD Card Reader

Cards Supported
microSD, microSDHC, and microSDXC cards

Audio Line Out

Connectivity
RCA R+L connectors

Power Delivery
Provides laptop charging up to 140W(3)

Kensington Security Slot
Supports Standard, MicroSaver, and MicroSaver 2 Locks

Power Adapter
Universal 240W, 100-240V AC, 50-60 Hz

Operating Temperatures
0˚C to 35˚C (32˚F to 95˚F)

Dimensions (WxDxH)
Dock: 9.6 x 4.2 x 1.3 in. (24.3 x 10.6 x 3.3 cm)
Power Adapter: 2.9 x 6.1 x 1 in. (7.5 x 15.5 x 2.5 cm)

Weight
Dock and Power Adapter: 2.9 lbs (1.3 kg)
