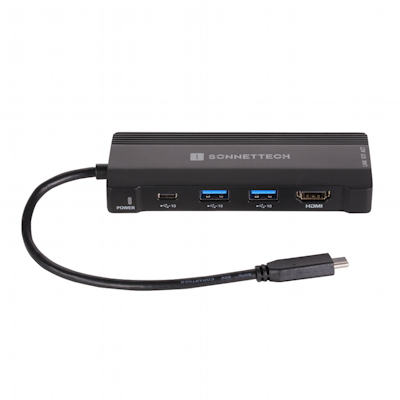

Echo 6 USB-C 5GbE Multi Hub

The Essential Ports You Need and MoreConnect Peripherals, Display, Network, and Power Through One Cable

Is your computer limited in the type and number of ports you need? Echo 6 USB-C Multi Hub expands a single USB-C or Thunderbolt port into a complete workstation — adding high-speed USB ports, 4K HDMI display output, 5Gb Ethernet networking, and USB-C power passthrough.

Mac Compatibility
macOS 15+
macOS Tahoe compatible

Windows Compatibility
Windows 11
Echo 6 USB-C Multi Hub HDMI port support requires connection of the hub to a computer Thunderbolt or USB-C port with DisplayPort Alt Mode support

iPad Compatibility*
iPad Pro with USB-C or Thunderbolt port
iPad Air (4th generation or later)
iPad mini (6th generation or later)
iPad (10th generation or later)
iPadOS 17+; iPadOS 18+ required for 5Gb Ethernet speed support

* (Echo 6 USB-C Multi Hub USB ports’ data transfer speeds supported depend on your iPad’s USB-C or Thunderbolt port’s USB data transfer speeds supported.)

Bus Interface
USB 3.2 Gen 2

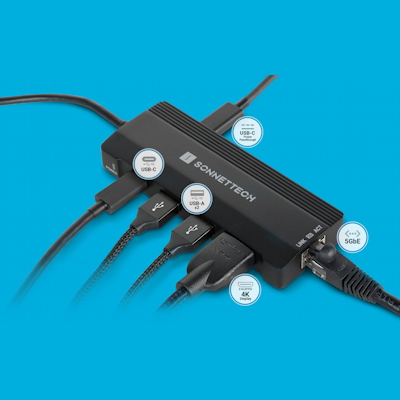

External Connectors
HDMI port
RJ45 Ethernet port
Two USB-A ports
USB-C port (no display support)
USB-C port (power passthrough)
USB-C captive cable

HDMI Standards
HDMI 2.0
HDCP 2.2

HDMI Supported Resolutions
4K @ 60Hz
1440p @ 60Hz
1080p @ 120Hz

HDMI Application Support
Suitable for productivity applications and videos
Not recommended for gaming or applications that require a dedicated GPU

RJ45 (Ethernet) Port
5GbE Controller
– Realtek RTL8157

Network Support
– 100 meters using Cat 5e (or better) cabling

Standard
– Compliant with 802.3bz-2016 and 10/100/1000 IEEE 802.2 specifications

Packets
– Maximum packet size: 16352 bytes (Jumbo Frames)

Data Rates Supported
– 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps

USB 3.2 Gen 2 Type A Ports
Connectivity
– With USB Type A connector

Peripherals Supported
– USB 3, 2.0 and 1.1 devices

Data Transfer Rate
– USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps

USB 3.2 Gen 2 Type-C Port
Connectivity
– With USB Type-C connector

Peripherals Supported
– USB4 and 3 devices

Data Transfer Rate
– USB 3.2 Gen2 (previously USB 3.1 Gen 2): 10 Gbps

Operating Temperatures
0˚C to 35˚C (32˚F to 95˚F)

Dimensions (WxDxH)
4.75 x 1.88 x 0.75 in. (120.7 x 47.8 x 19.1 mm)

Weight
0.19 lbs (0.086 kg)

Compliance
RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2 Safety

Package Contents
Echo 6 USB-C Multi Hub (with captive 0.21-meter USB-C cable)
Documentation
