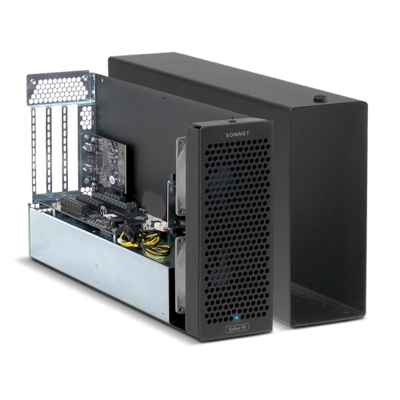

Echo III Desktop Thunderbolt 3 Three-Slot PCIe Card Expansion System

Connect Three Full-length PCIe Cards to Computers with Thunderbolt 3 or Thunderbolt 4 Ports

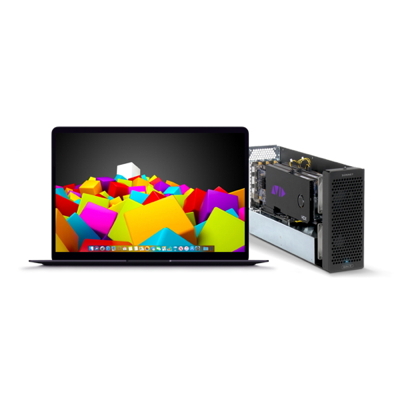

For creative pros using the latest portable, mini desktop and all-in-one computers in their workflows, onboard processing power alone is not enough to get the job done. While these computers include high-performance Thunderbolt™ 3 ports to support peripherals, what they lack is PCIe expansion slots to install specialty cards that add needed video and audio inputs, transcode data, and connect to high-speed shared storage and networks. Sonnet has a solution—the Echo™ III Desktop—a professional Thunderbolt to PCIe card expansion system that enables you to connect three (up to) full-length (12.28 inches long) PCIe cards at the same time, via a single cable.

Form Factor
• Desktop expansion system

External Connectors
• Two Thunderbolt 3 ports

Internal Connector
• 6-pin Mini-Fit Jr (same type as on legacy Mac Pro motherboard; provides up to 75W of power for PCIe cards that require supplemental power)

Expansion Slots (Facing Rear, Left to Right)
• One x8 mechanical (x8 electrical) PCIe 3.0
• One x16 mechanical (x8 electrical) PCIe 3.0
• One x8 mechanical (x4 electrical) PCIe 3.0

PCIe Cards Supported
• Three full-length, full-height, single-width PCIe cards or
• One full-length, full-height, double-width PCIe card, plus one single-width card

Power Supply
• Universal 400W, 115-230V AC, 50-60 Hz

Operating Temperature
• 0ºC to 35ºC (32ºF to 95ºF)

Dimensions (WxDxH)
• 3.5 x 16.7 x 9 in. (8.9 x 42.4 x 22.9 cm)

Weight
• 9.7 lbs (4.40 kg)

Compliance
• RoHS 3 (Directive 2015/863)
• IEC62368-1 and IEC62368-2

Package Contents
• Echo III Desktop enclosure
• Power cord
• 0.7-meter Thunderbolt 3 (40Gbps) cable
• ThunderLok 3 Thunderbolt Connector Retainer Clip
• Documentation
