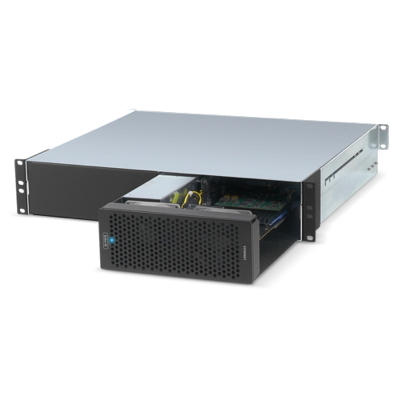

Echo III Rackmount Thunderbolt 3 Three-Slot PCIe Card Expansion System

Connect Three Full-length PCIe Cards to Computers with Thunderbolt 3 or Thunderbolt 4 Ports

The best portable, mini desktop and all-in-one computers feature powerful CPUs and include high-performance Thunderbolt™ ports to support peripherals. But they lack the PCIe expansion slots creative pros need to install specialty adapter cards that enable their workflows by adding video and audio inputs, transcoding data, and connecting to high-speed shared storage and networks. Sonnet has a solution—the Echo™ III Rackmount—a professional Thunderbolt to PCIe card expansion system that enables you to connect three (up to) full-length (12.28 inches long) PCIe cards to your computer at the same time, via a single cable.

Form Factor
• Rackmount expansion system

External Connectors
• Two Thunderbolt 3 ports
• 12V power port

Internal Connector
• 6-pin Mini-Fit Jr (same type as on legacy Mac Pro motherboard; provides up to 75W of power for PCIe cards that require supplemental power)

Expansion Slots (Facing Rear, Left to Right)
• One x8 mechanical (x8 electrical) PCIe 3.0
• One x16 mechanical (x8 electrical) PCIe 3.0
• One x8 mechanical (x4 electrical) PCIe 3.0

PCIe Cards Supported
• Three full-length, full-height, single-width PCIe cards or
• One full-length, full-height, double-width PCIe card, plus one single-width card
• Three full-length, full-height, single-width PCIe cards

Power Supply
• Universal 400W, 115-230V AC, 50-60 Hz

Operating Temperature
• 0ºC to 35ºC (32ºF to 95ºF)

Dimensions (WxDxH)
• 19 x 16.5 x 3.6 in. (48.3 x 41.9 x 9.1 cm)

Weight
• 23.15 lbs (10.50 kg)

Compliance
• RoHS 3 (Directive 2015/863)
• IEC62368-1 and IEC62368-2

Package Contents
• Echo III Rackmount enclosure
• Power cord
• 0.7-meter Thunderbolt 3 (40Gbps) cable
• ThunderLok 3 Thunderbolt Connector Retainer Clip
• Extension rails for rack depth 16-24 inches
• Documentation
