xMAC mini (2024+) 2U Rackmount System with Echo IIDV T5 Module

(Preconfigured system with modules for Mac minis and two PCIe cards).

The latest Mac mini delivers outstanding processing power, outperforming computers multiple times its miniscule size and price, but raw performance is not enough for every task. Take for instance off-the-desk pro workflows — you’ll need to secure the computers and a way to add more connectivity and processing capabilities than minis offers onboard.

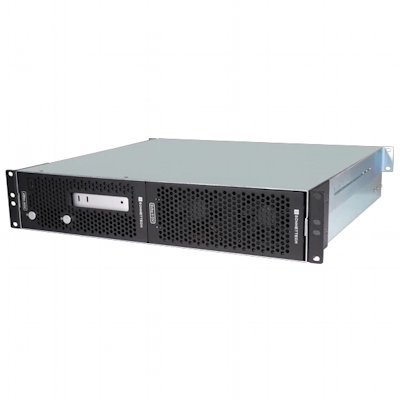

xMac mini (2024+) systems make it possible to seamlessly integrate one or two Mac minis into a compact, rugged steel 2U rackmount enclosure that houses a dedicated computer mounting module alongside a Thunderbolt to PCIe card expansion module, delivering the connectivity and performance required for demanding audio, video, and broadcast workflows.

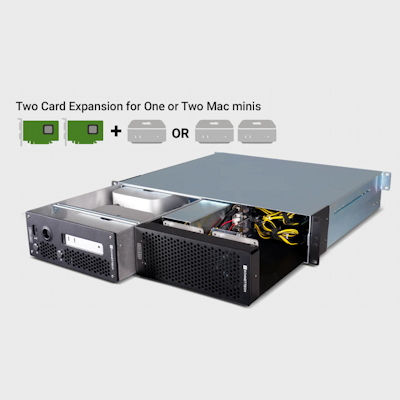

xMac mini (2024+)/Echo II DV Thunderbolt 5 is a powerful preconfigured expansion system that includes a 2U rackmount enclosure that houses two expansion modules: xMac mini (2024+) Module (for connecting Mac mini computers), and Echo II DV T5 Module (that supports two full-height, full-length, single-width DV I/O or other bandwidth-hungry PCIe cards). Connect one card each to two minis — or two cards to one mini — via two Thunderbolt cables.

Connects Two PCIe Card Slots – Use high-performance DV I/O PCIe cards with the Mac mini computers.
Makes Your Mac minis Road-ready – A rugged, steel-framed module with rubber-cushioned brackets securely holds Mac minis in place. The 2U rackmount enclosure houses both the computer mounting module and the Thunderbolt expansion module, enhancing mobility and streamlining your workflow.
Perfect for Use in Server Rooms – Standard mounting holes and included adjustable rack rails enable easy installation into any standard server rack up to 24″ deep.
Front Panel Power Buttons – Front panel buttons enable easy and reliable operation of the Mac minis’ bottom-mounted power buttons.
Port and Slot Access – Direct access to the front ports of the front-mounted mini is provided. A front panel USB-C port connects to the rear-mounted mini. A passthrough opening enables cable connections to both minis. Full access is available to all ports on the back of each computer.
Front to Back Airflow Management – Supports direct airflow through the Mac minis and Thunderbolt expansion module to keep them operating as cool in a rack as on a desk, even when xMac mini (2024+) is mounted between two other rack-mounted components.
Easy Access – Secured with two thumbscrews each to the back of the enclosure, the xMac mini (2024+) Module and Thunderbolt expansion module can be removed and reinstalled through the front of the enclosure.
Power Hub – Single power connection for one or two Mac minis.
Space for Storage – Beneath the computers, space to place two Thunderbolt or USB SSDs (sold separately) is provided.
Compatibility – Mac mini (2024+).
Dimensions (WxDxH): 23 x 22 x 8.5 in. (48.3 x 41.9 x 13.2 cm).
Weight: 29 lbs (13.15 kg).
Package Contents – 2U rackmount enclosure; xMac mini (2024+) Module; Echo II DV T5 Module (2-slot Thunderbolt to PCIe card expansion); two region-specific power cables; 6-pin auxiliary power cable; 0.8-meter Thunderbolt cable; ThunderLok-A connector lock; extension rails for rack depth 16-24 inches; and documentation.
