xMAC mini (2024+) 2U Rackmount System without Echo Module

(Preconfigured system with module for Mac minis and bay for expansion module).

The latest Mac mini delivers outstanding processing power, outperforming computers multiple times its miniscule size and price, but raw performance is not enough for every task. Take for instance off-the-desk pro workflows — you’ll need to secure the computers and a way to add more connectivity and processing capabilities than minis offers onboard.

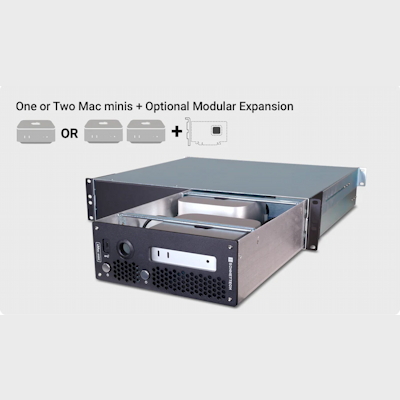

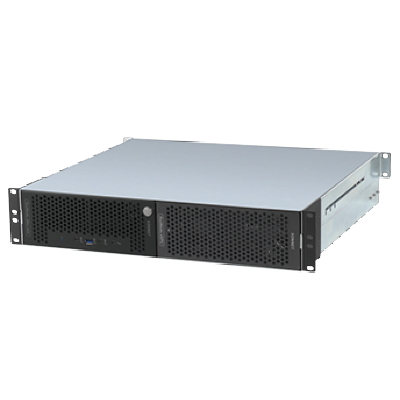

xMac mini (2024+) systems make it possible to seamlessly integrate one or two Mac minis into a compact, rugged steel 2U rackmount enclosure that houses a dedicated computer mounting module alongside a Thunderbolt to PCIe card expansion module, delivering the connectivity and performance required for demanding audio, video, and broadcast workflows.

Front Panel Power Buttons – Front panel buttons enable easy and reliable operation of the Mac minis’ bottom-mounted power buttons.
Port and Slot Access – Direct access to the front ports of the front-mounted mini is provided. A front panel USB-C port connects to the rear-mounted mini. A passthrough opening enables cable connections to both minis. Full access is available to all ports on the back of each computer.
Front to Back Airflow Management – Supports direct airflow through the Mac minis and Thunderbolt expansion module to keep them operating as cool in a rack as on a desk, even when xMac mini (2024+) is mounted between two other rack-mounted components.
Easy Access – Secured with two thumbscrews each to the back of the enclosure, the xMac mini (2024+) Module and Thunderbolt expansion module can be removed and reinstalled through the front of the enclosure.
Power Hub – Single power connection for one or two Mac minis.
Space for Storage – Beneath the computers, space to place two Thunderbolt or USB SSDs (sold separately) is provided.
Enclosure Expansion Bay – Add your own choice of expansion module.
Makes Your Mac minis Road-ready – A rugged, steel-framed module with rubber-cushioned brackets securely holds Mac minis in place. The 2U rackmount enclosure houses both the computer mounting module and the Thunderbolt expansion module, enhancing mobility and streamlining your workflow.
Perfect for Use in Server Rooms – Standard mounting holes and included adjustable rack rails enable easy installation into any standard server rack up to 24″ deep.
Future Expandability – Add an expansion module to connect PCIe card slots and use high-performance PCIe cards with the Mac mini computers.
Compatibility – Mac mini (2024+).
Dimensions (WxDxH): 23 x 22 x 8.5 in. (48.3 x 41.9 x 13.2 cm).
Weight: 24 lbs (10.89 kg).
Package Contents – 2U rackmount enclosure; xMac mini (2024+) Module; region-specific power cable; extension rails for rack depth 16-24 inches; and documentation.
